DeWalt 20V to Masterforce 20V Battery Adapter
€30,95
Taxes included.
Free Shipping to Germany & UK. Other European countries around €3 (local currency applied)Zero customs fees. Zero surprise taxes.

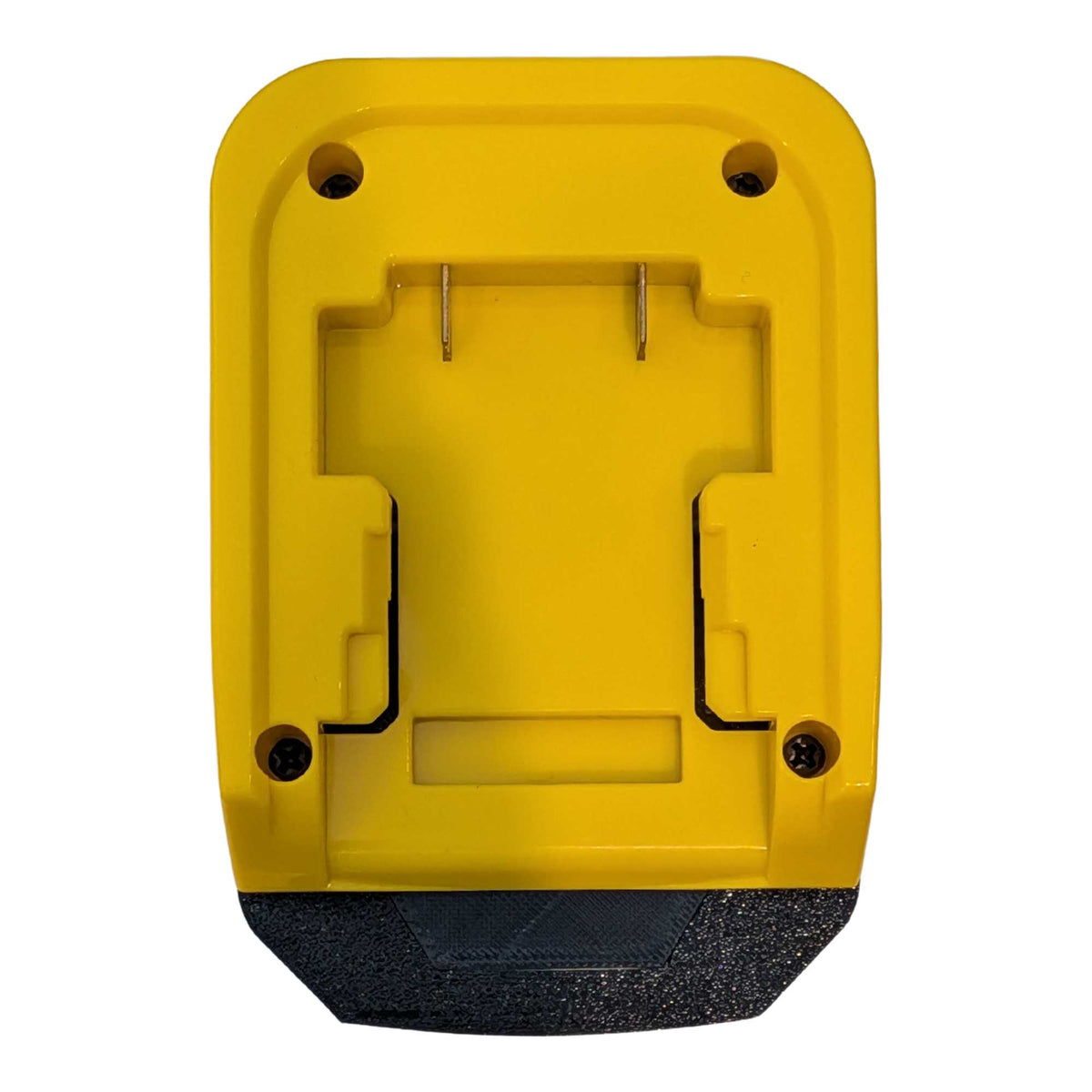

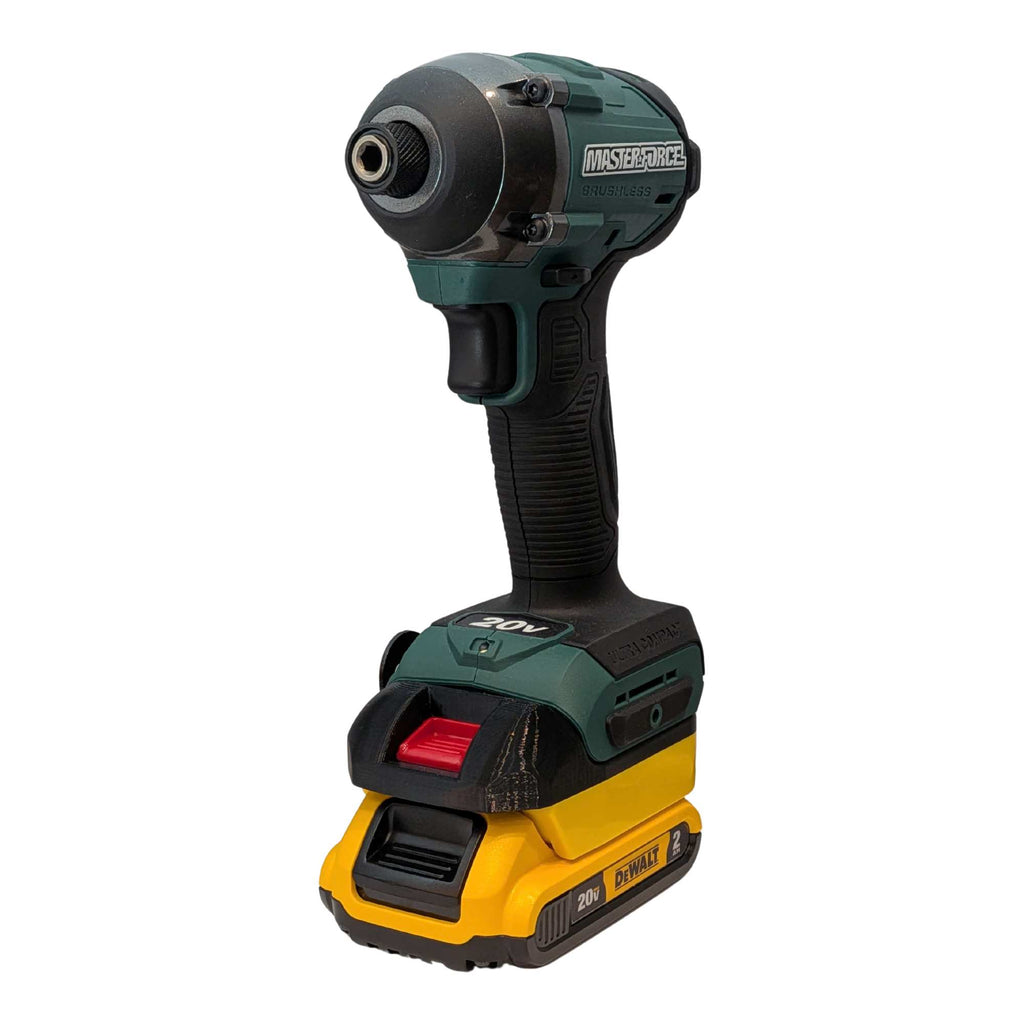

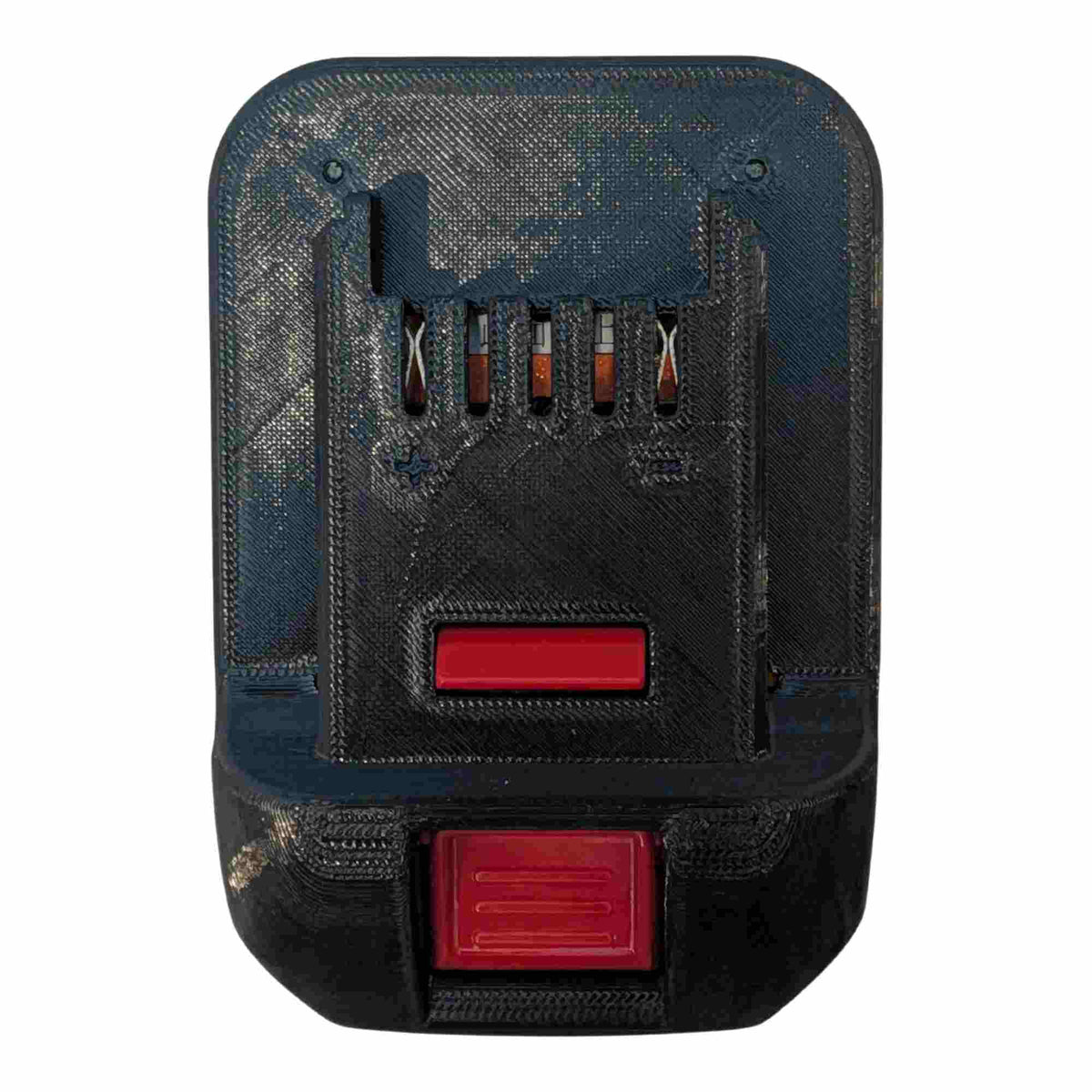

Use your DeWalt 20V MAX batteries on Masterforce 20V cordless tools, without buying into a second battery platform. Both run at 20V, so the adapter changes the fitting and not the voltage. Built with an injection-molded ABS battery interface, a 3D-printed ABS tool socket for a close fit, and pure copper contacts. One battery platform across more tools means less spent on batteries and less to keep charged.
Specifications
- SKU
- PTA-DWM20-MAS20
- Fits this battery
- DeWalt 20V MAX (Lithium-Ion)
- Battery voltage
- 20V
- Runs these tools
- Masterforce 20V (Lithium-Ion)from Menards
- Tool voltage
- 20V
- Housing
- ABS
- Terminals
- Copper
- Current rating
- 40A continuous (80A peak at 18VDC for up to 2 seconds)720 Watt continuous at 18V nominal
- Internal wiring
- 5 mm²
- Weight
- 130 g (4.6 oz / 0.29 lb)
- Colour
- Black, Yellow
- Operating humidity
- 5–95% RH
- Operating temperature
- -10 °C to 50 °C (14 °F to 122 °F)
- USB port
- No
- What's in the box
- Battery Adapter
- Warranty
- 12 months after the date of deliveryMore details
- Revision
- Revision 01 (released on June 19, 2025)
Why choose this adapter
- Your DeWalt 20V MAX battery and Masterforce 20V tools run at the same voltage, so the adapter changes the fitting rather than converting anything.

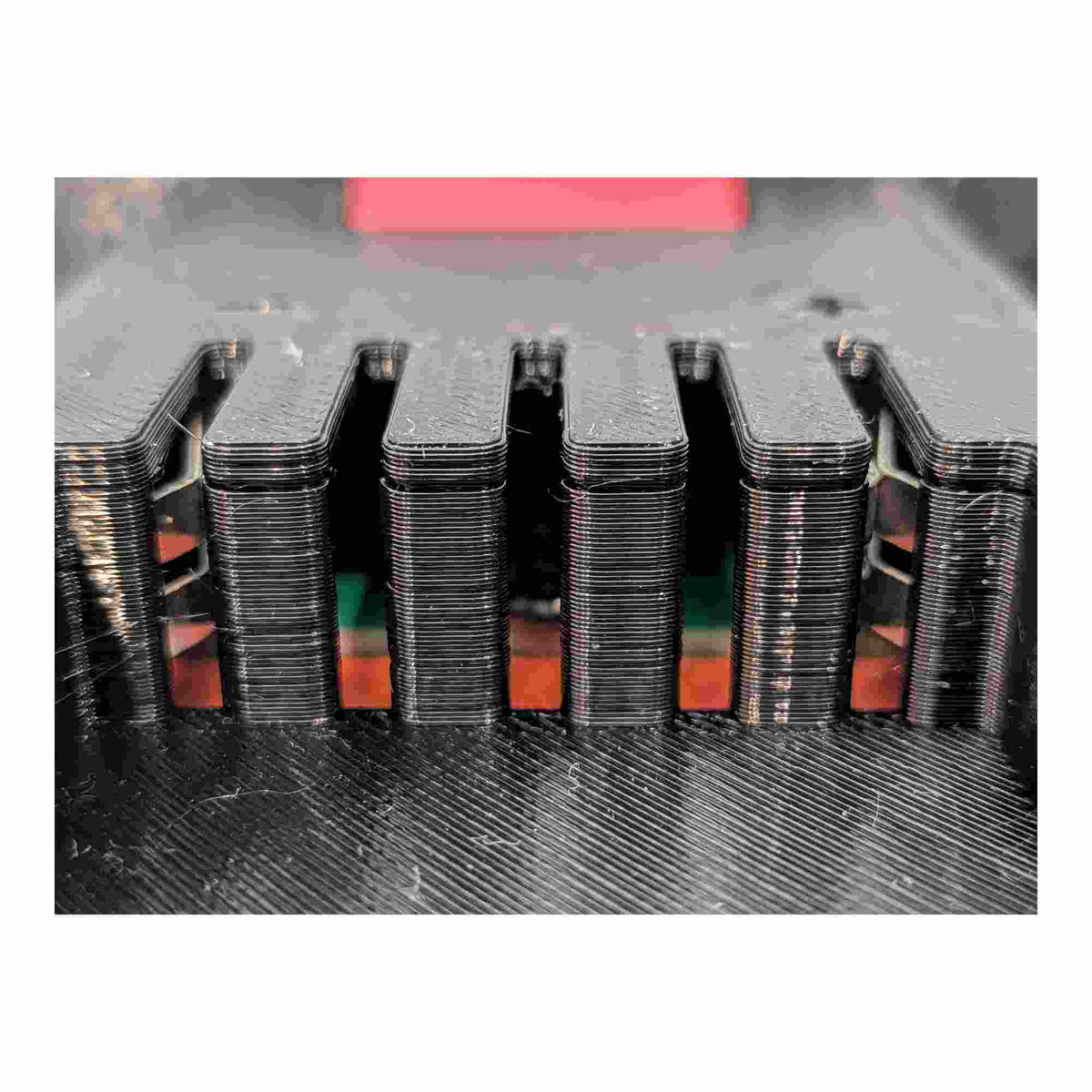

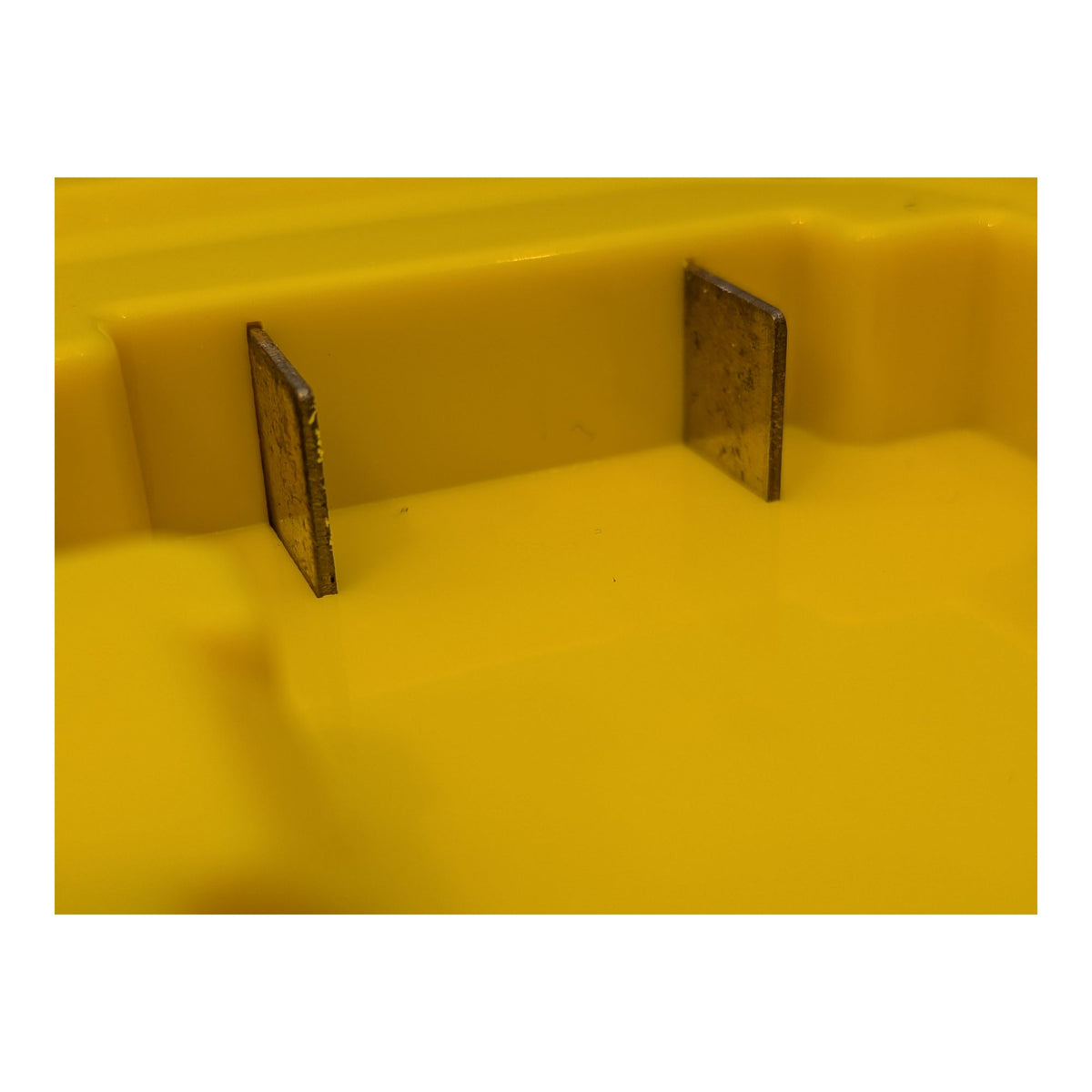

- Solid copper terminals, so less of the current is lost as heat.
- 5 mm² internal wiring, rated for 40A continuous with 80A peak at 18VDC for up to 2 seconds, so a high-draw tool is not held back by the adapter.
- Covered by a 12-month warranty from the day it arrives.
DeWalt 20V MAX and Masterforce 20V compatibility
It works in one direction only: DeWalt batteries powering Masterforce tools. For the opposite pairing, see adapters that run on Masterforce 20V batteries.
Compatibility can vary with the exact battery and tool model. Before ordering, confirm that your battery belongs to the DeWalt 20V MAX platform and that your tool takes Masterforce 20V batteries.
Important charging and safety information
This adapter is for powering cordless tools and nothing else. It cannot charge DeWalt or Masterforce batteries and must never be connected to a charger of any kind. Always take the battery out of the adapter before charging, and charge it on the original charger made for your DeWalt 20V MAX battery.

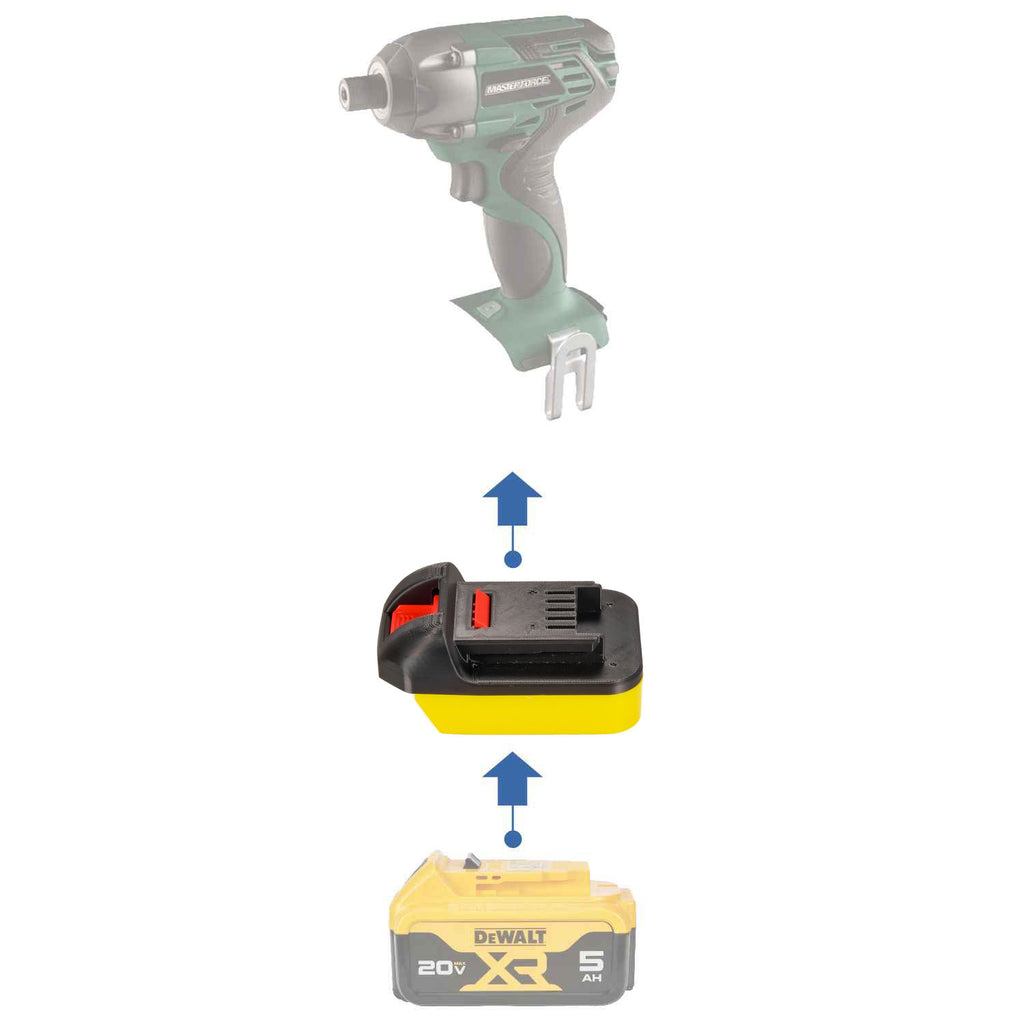

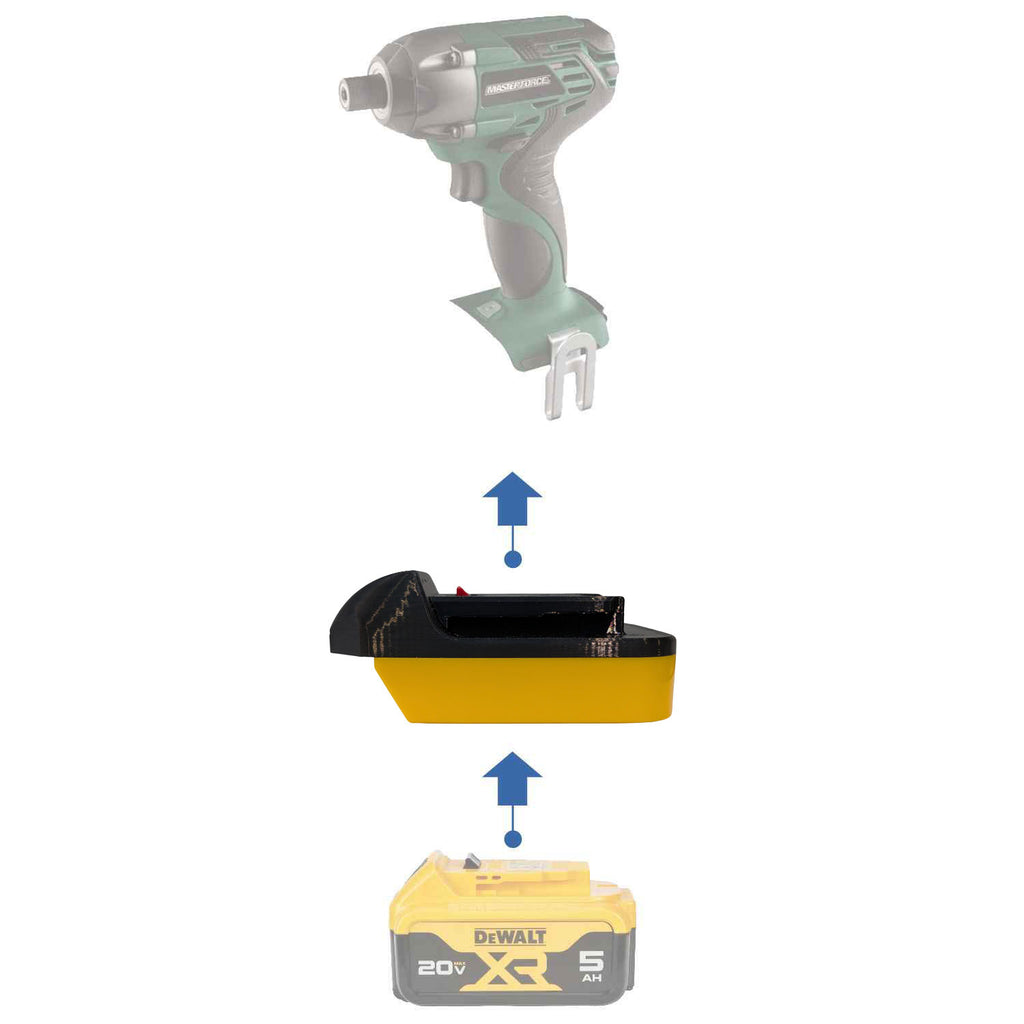

How it works
-

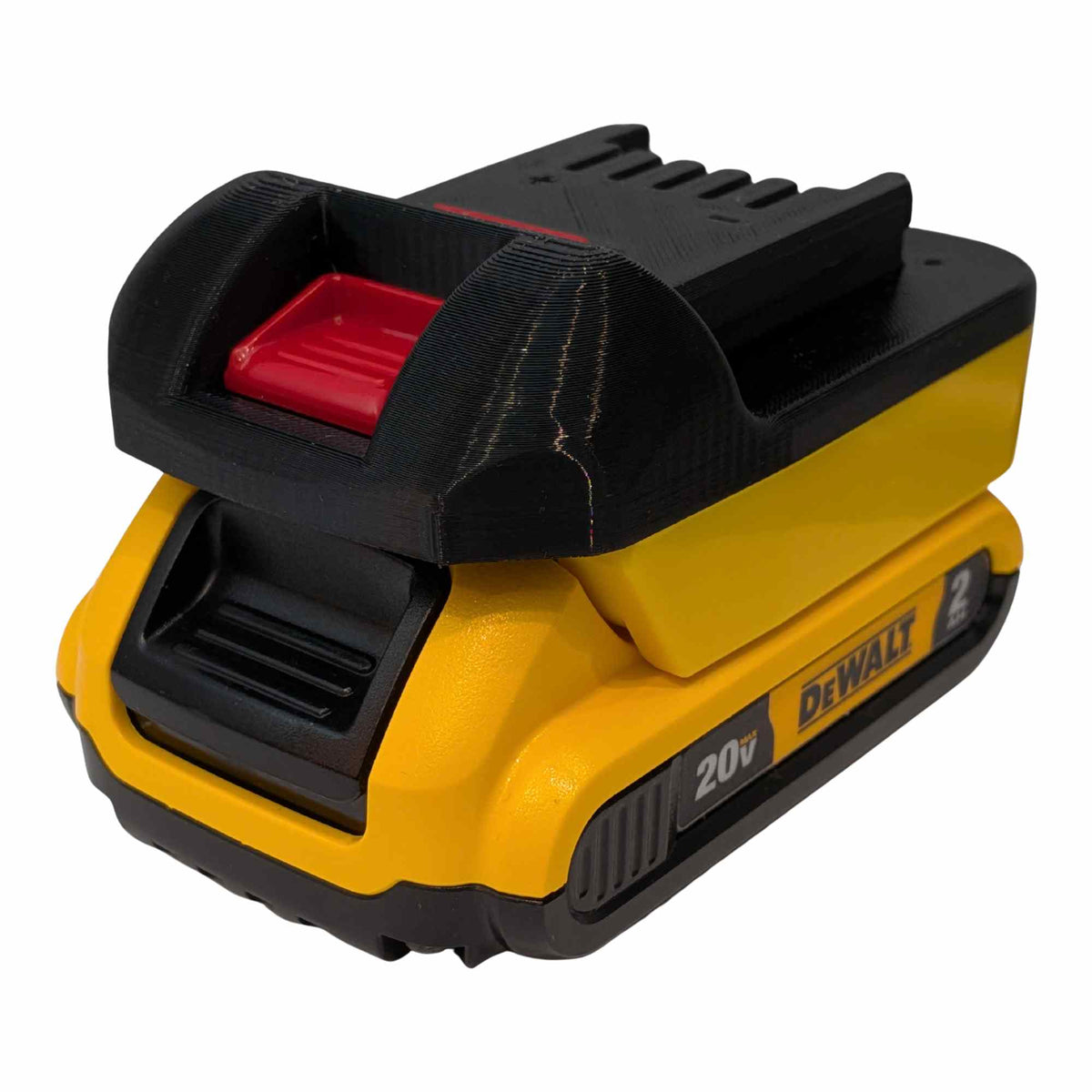

1. Use the battery you own
Any compatible DeWalt 20V MAX battery you already have.
-
2. Slide on the adapter
It goes where the original Masterforce 20V battery sits.
-
3. Click in and work
No tools, no wiring, no modifications.
DeWalt 20V MAX to Masterforce 20V — Common Questions
My battery says 20V. Can it run a tool rated differently?
Yes, and they are closer than the labels suggest. 20V is what a DeWalt 20V MAX battery measures off the charger with no load; 18 V is what it holds in use. Masterforce 20V tools are built around 18 V. The two numbers describe the same class of battery, which is why the adapter works rather than merely fits.
Will this fit my other DeWalt batteries?
Only DeWalt 20V MAX batteries. DeWalt also sells DeWalt 12V MAX, DeWalt 18V Ni-Cd, and those use a different socket — same brand, different rail and contacts, so they need their own adapter. Compare the rail on your battery with the photos before ordering.
Will my Masterforce 20V tool run as long on a DeWalt 20V MAX battery?
Runtime comes from the battery, not the adapter — a 5.0Ah DeWalt 20V MAX battery lasts roughly twice as long as a 2.5Ah one, exactly as it would on its own tool. The adapter’s copper terminals and heavy-gauge wiring are there to keep resistive loss low.
Could this damage my DeWalt 20V MAX battery or my Masterforce 20V tool?
Used with undamaged, compatible equipment it is not expected to. DeWalt 20V MAX batteries are lithium-ion with a protection circuit built into the battery, and it keeps working through the adapter — it stays in the battery and never moves into the adapter. Stop when the tool slows noticeably rather than running the battery flat, and stop using the adapter if it becomes unusually hot or the contacts look damaged.
Can I charge through the adapter?
No, and it should never be attempted. The adapter carries power one way only, out to the Masterforce 20V tool — there is no charging circuit inside it. Connecting it to a charger puts the battery, the charger and the adapter at risk. Always take the DeWalt 20V MAX battery off the adapter and charge it on its own charger.
My Masterforce 20V gear came from Menards. Is that the same platform?
Yes — Menards is where Masterforce 20V is sold, so a battery or tool bought there is the platform this adapter is built for. What matters is the socket, and Menards stock is the reference for it.
Does it work with third-party DeWalt batteries?
Usually. What matters is the socket, not the badge: if the battery slides on and locks the way an original does, the adapter takes it and the Masterforce 20V tool runs. Aftermarket moulding does vary, so if yours looks unusual send us a photo and we will check before you order.
How much does it add to the Masterforce 20V tool?
130 g (4.6 oz) and a short extension between battery and tool. You notice it overhead or in a tight cabinet; on a drill or driver held normally it disappears.
Customer reviews
No reviews for this adapter yet — yours would be the first.
